Mapie Shower Drain – Where Performance Meets Seamless Design

Modern shower drainage is about more than efficient water removal. It also needs to support a clean, uninterrupted floor design. Profilpas shower drains combine practical drainage performance with discreet designs that integrate with the surrounding bathroom finish.

The PP Drain Aqua is made from AISI 316 stainless steel and features a patented removable siphon made from antibacterial ABS. The removable siphon makes inspection and cleaning easier, while the range offers different cover options to suit various bathroom finishes.

For renovation projects where floor height is limited, the Thin Drain range provides a low-profile solution with an installation height of 55 mm. It is particularly suitable for refurbishment projects where available floor depth is restricted. The range also supports tileable cover options that can help integrate the drain with the surrounding floor finish.

Mapie shower drains are well suited for residential bathrooms and en-suites across the UAE, as well as hotel and hospitality projects where finishing standards are closely evaluated. They are also suitable for wet rooms and walk-in showers that require a seamless floor appearance, especially when large-format tiles are part of the design layout.

Why the Right Shower Drain Matters in the GCC

In the GCC region, including Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, and the UAE, bathroom drainage is subject to specific demands that go beyond standard residential requirements. High ambient humidity, elevated temperatures, and the widespread use of large-format tiles across high-end residential and hospitality projects all influence what a shower drain must deliver in practice.

Poor drainage can leave standing water on the shower floor, which can contribute to grout deterioration and increase moisture exposure within the underlying wet-area system. In multi-storey buildings, this type of moisture ingress can reach structural slabs and lead to damage that is far more costly to repair than the drain itself. Specifying a high-quality shower drain from the outset is one of the most practical steps a contractor or developer can take to protect the integrity of the wider bathroom system.

The AISI 316 stainless steel used in the PP Drain Aqua is well suited to demanding wet-area applications. This grade offers strong resistance to corrosion and is particularly relevant where the drain remains exposed to moisture over time. Its material specification makes it a practical choice for shower and bathroom installations across the UAE and wider GCC region.

Point Drains and Linear Drains: Understanding the Difference

There are two primary formats used in contemporary bathroom and wet room installations: point drains and linear drains. Each suits different floor configurations and design outcomes.

Point drains are positioned at a central low point on the shower floor, with the substrate sloping toward that single outlet from all sides. They are cost-effective, straightforward to install, and compatible with most tile formats. For standard residential bathrooms across the UAE and wider GCC, a point drain can be a practical choice where the floor layout and drainage requirements suit a central outlet.

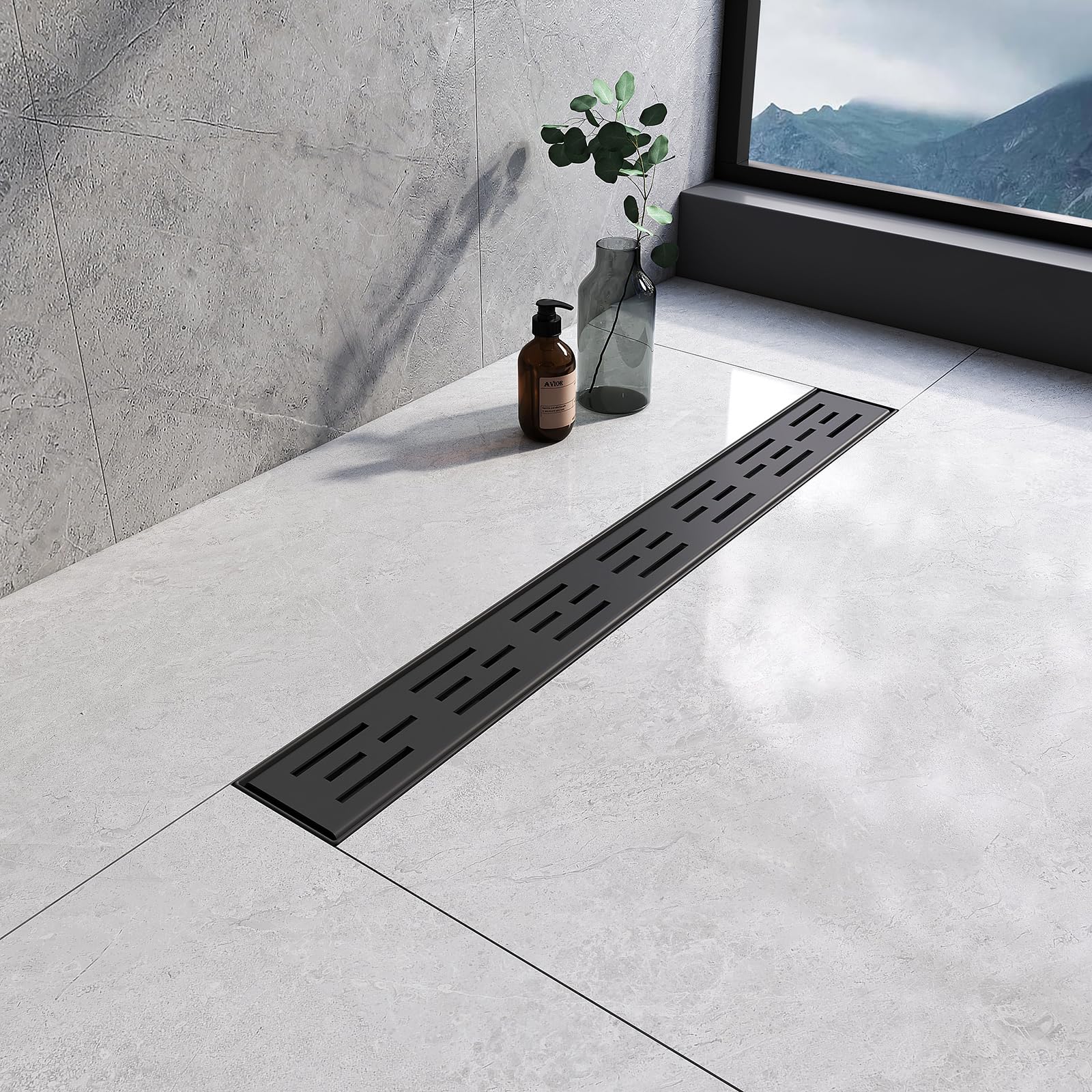

Linear drains, by contrast, run along one edge of the shower floor and require the substrate to slope in a single direction. This format is well suited to walk-in showers and wet room layouts where a curbless threshold is required. The single-slope floor can also simplify large-format tile installation by reducing the need for multiple slopes toward a central outlet.

The Tile Cover or Invisible Cover options can help the drain blend into the surrounding floor finish, creating a more continuous visual appearance. This approach suits walk-in showers, wet rooms, and projects where the drainage system needs to integrate closely with the overall floor design.

Shower Drain and Waterproofing: Getting the System Right

A shower drain works as part of the wider wet-area system. Its installation needs to coordinate with the waterproofing layer, tile adhesive, and finished floor to help manage water effectively and reduce the risk of moisture ingress. When the drain body and the waterproofing membrane are not properly coordinated, water can bypass the sealed layer and reach the screed or concrete slab below, even when the drain itself is functioning correctly.

The shower drain and waterproofing system should be installed as a coordinated assembly. The waterproofing connection at the drain must follow the manufacturer’s installation requirements to create a continuous sealed system. Tile adhesive and the finished tile layer should then be installed according to the specifications of the selected waterproofing and drainage system.

CretePro Trading supplies the full range of products needed to build this system correctly. The waterproofing category includes flexible membranes suited to bathroom floors, wet rooms, and balconies across the UAE. The tile adhesive range covers standard to high-performance bonding for ceramic, porcelain, and natural stone tiles. When these products are specified together with the correct shower drain, the entire wet area system works as it should from day one.

For further information on the waterproofing membranes and tile adhesives that work alongside these drainage products, visit the Waterproofing and Tile Adhesive and Grout pages on the CretePro Trading website.

Supply of Shower Drains Across the UAE and GCC

CretePro Trading supplies shower drains to contractors, developers, procurement teams, and fit-out companies across the UAE and the wider GCC region. Whether the project is a single bathroom renovation or a large-scale hospitality development, the team can provide product specifications, technical data sheets, and supply information for the full Mapie drainage range.

To discuss a specific project requirement or request pricing information for shower drain supply across Bahrain, Kuwait, Oman, Qatar, Saudi Arabia, or the UAE, contact the CretePro Trading team directly.
